Quick Start

Install and Access ArkKVM​

Getting ArkKVM up and running only takes a few minutes. Follow the steps below to start controlling your computer remotely.

  1. Connect USB-C

    • Connect the USB-C port on ArkKVM to a USB port on the computer you want to control.

  2. Connect HDMI

    • Plug an HDMI cable from ArkKVM to the HDMI port on the computer.

  3. Connect to the Network

    • Insert an Ethernet cable into the ArkKVM Ethernet port and connect it to your router or network switch.

  4. Check the IP Address

    • When powered on, the front display of ArkKVM shows the device IP address after startup.

  5. Access the Web Interface

    • Open a web browser and enter the IP address shown on the ArkKVM display.
    • You can now control the computer remotely through the ArkKVM web interface.

ATX Power Control Extension​

Remotely power on, reset, and monitor your PC while keeping your front panel buttons and LEDs working.

What You'll Install​

  • ATX Extension Board — installs inside your PC case (like a slot cover)
  • RJ12 Cable — connects the ATX board to ArkKVM
  • Brackets — fit different case sizes
  • DuPont cable — connects the ATX board and motherboard

Before You Start​

  1. Shut down your PC.
  2. Turn off the PSU switch.
  3. Unplug the power cable.
  4. Touch metal (case frame) to discharge static.

Step 1 — Connect to Your Motherboard (Important)​

This is the most critical step.

  1. Locate the F_PANEL header on your motherboard.
    • Usually labeled: F_PANEL, PANEL1.

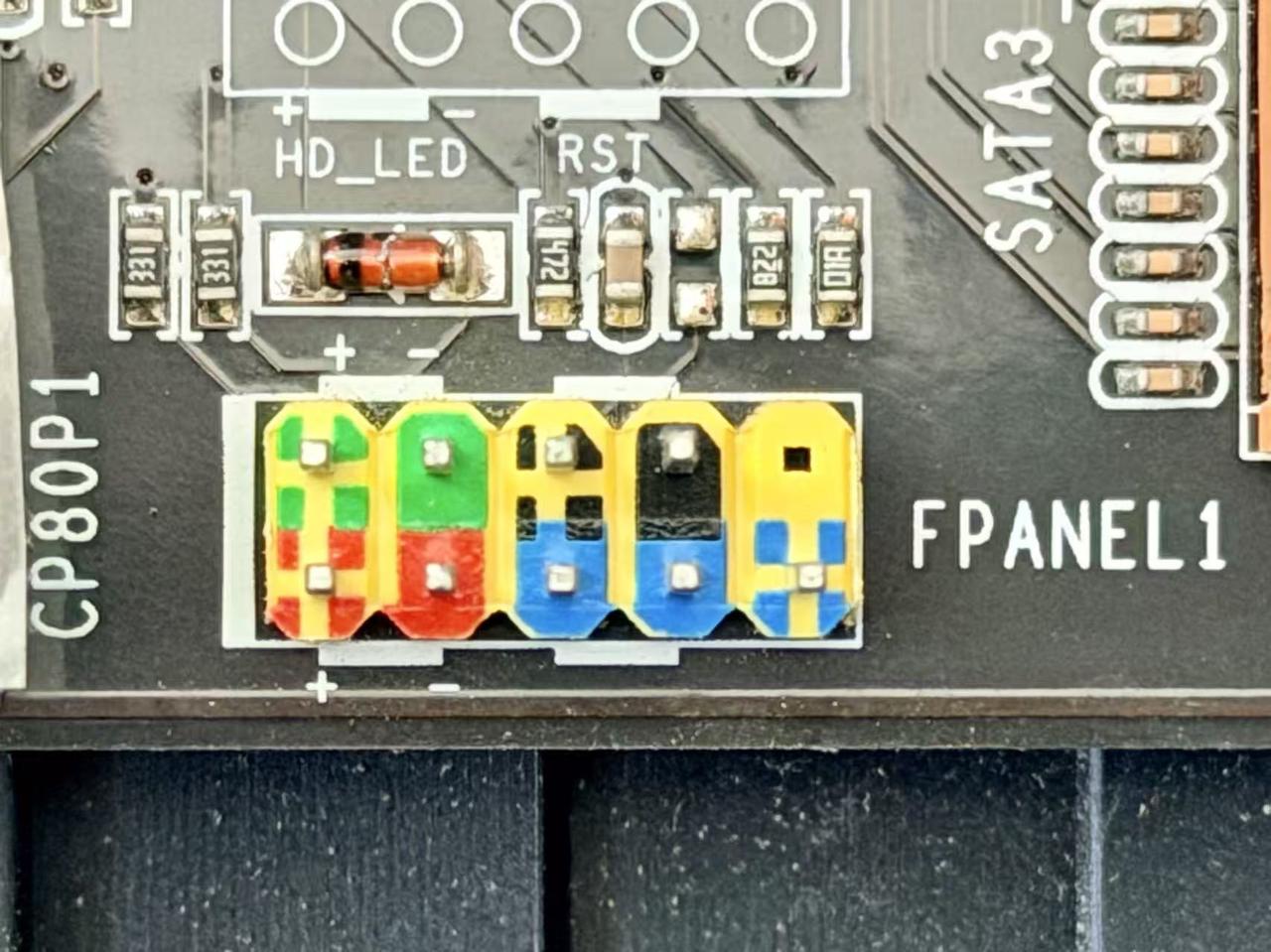

Motherboard F_PANEL header example
  1. Disconnect your case front panel cables from the motherboard (if connected).
  2. Connect the motherboard to the ArkKVM ATX board using the included DuPont cables
    • Match each pin by label
    • Common labels include: PWR, RST, PWR LED, HDD LED
    • These labels may appear on:
      • The motherboard
      • The DuPont cable connectors
      • The ArkKVM ATX board Make sure each signal is connected one-to-one (e.g., PWR → PWR, RST → RST)
info

Pay special attention to polarity (+ / –) for LED pins (PWR LED, HDD LED)

  • Incorrect polarity won’t damage the device, but LEDs may not work properly
tip

If unsure, check your motherboard manual.

Step 2 – Reconnect Your Case Buttons (Optional)​

If you still want to use your case power/reset buttons:

  1. Connect your case front panel cables to the ArkKVM ATX board
  2. Match the labels:
  • Power Switch
  • Reset Switch
  • Power LED
  • HDD LED
info

LED cables must match polarity (+/–), or they won’t work

Step 3 — Install the ATX board​

  1. Select the appropriate bracket (full-height or low-profile) based on your PC case, and secure it to the ATX board using the provided screws
  2. Find an empty PCI/PCIe slot opening (no electrical connection needed)
  3. Insert the ATX board into the slot opening
  4. Secure it to the case with the included screw

Step 4 — Connect to ArkKVM​

Use the RJ12 cable to connect:

ATX board ⇄ ArkKVM

tip

When ArkKVM is powered, it can supply power to the ATX board, so you do not need to connect the ATX board’s USB-C port.

If you do connect the ATX power control board’s USB-C port to an external power adapter, ArkKVM will instead be powered by the ATX board.

Step 5 — Power On and Test​

  1. Power your system back on
  2. Open a browser and enter ArkKVM’s IP address
  3. Go to ATX Power Control

You should now be able to:

  • Power on the PC
  • Reset the PC
  • Check the remote PC's status

Done​

Your ArkKVM is now fully connected to your PC's power controls and ready for remote operation.
